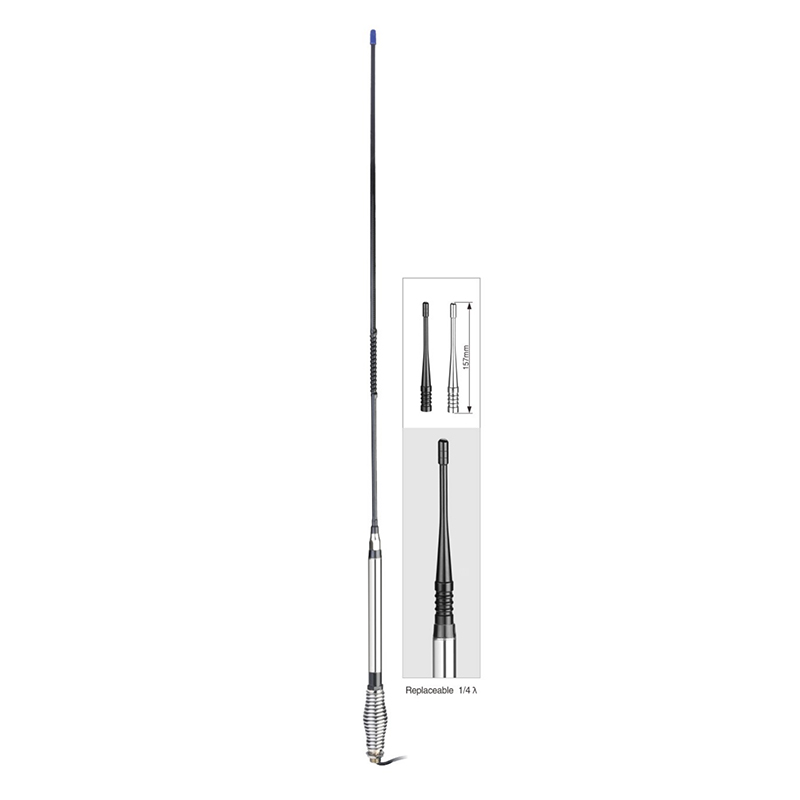

Frequency range: 26.5- 28MHz SWR: ≤1.2:1 Max. power: 35W continuous 250W Short time Bandwidth at S.W.R. 2:1: 1900KHz Impedance: 50ohm Whip length: 1200mm Adjustment: 0~90° Cable Length: RG58/157" Po...

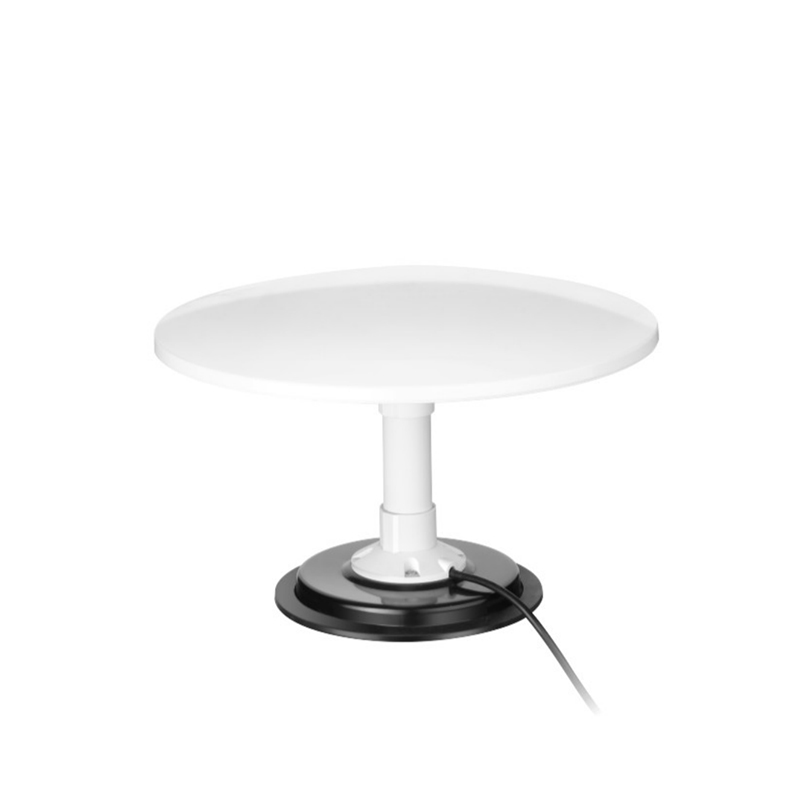

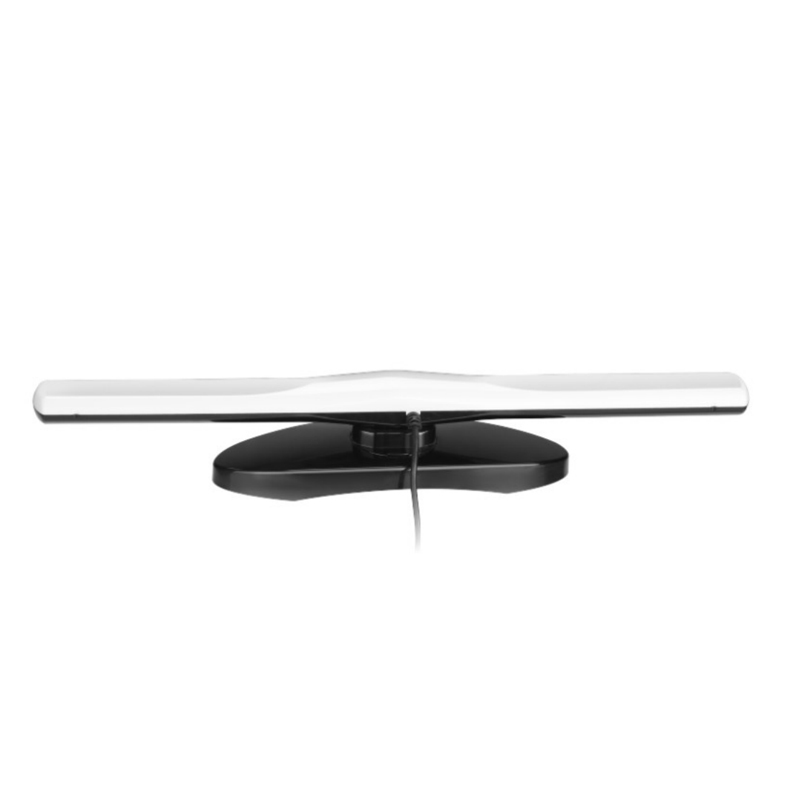

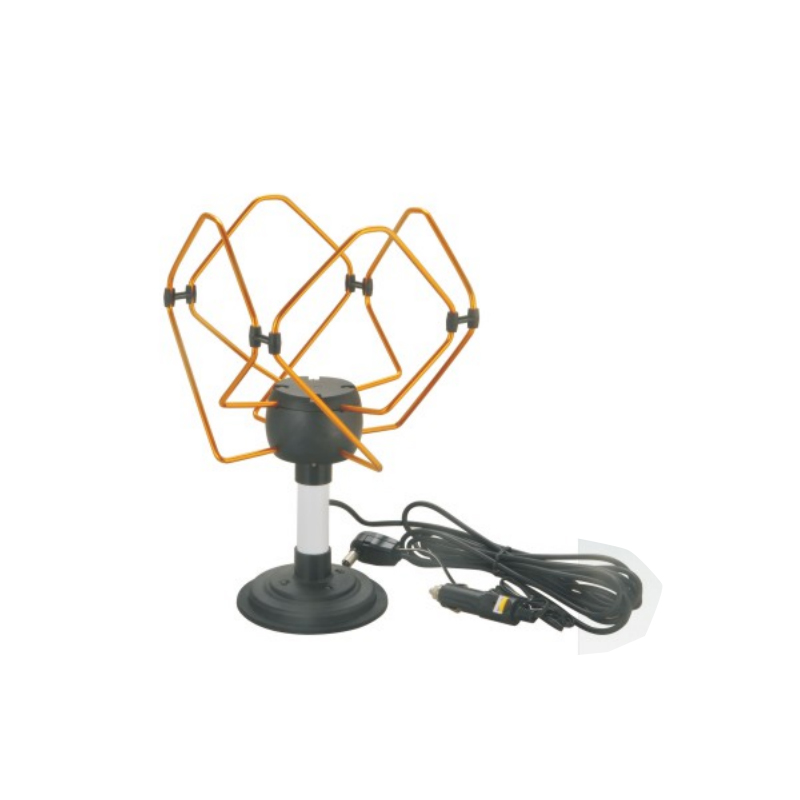

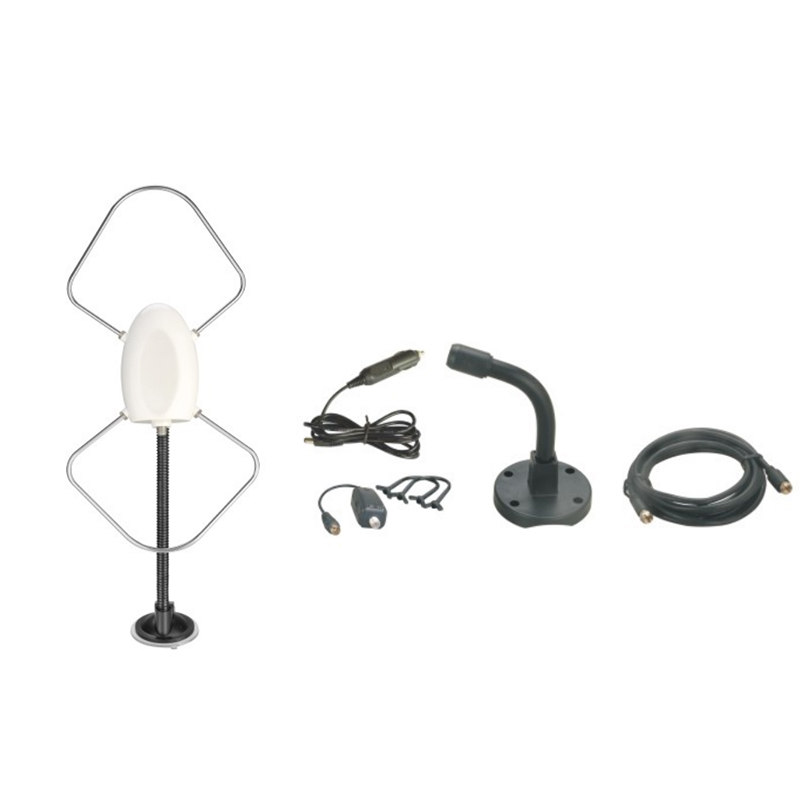

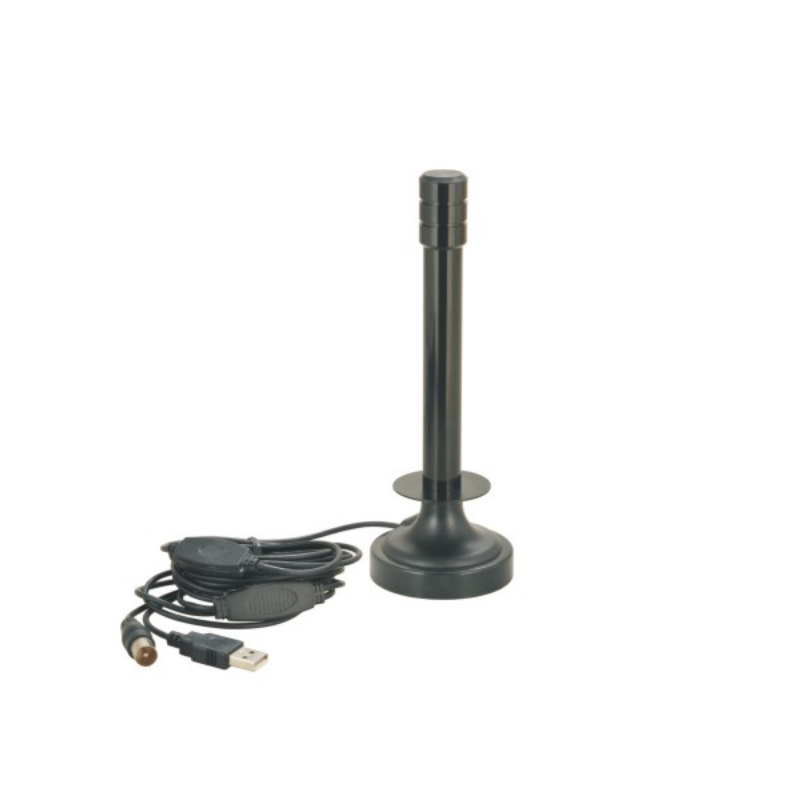

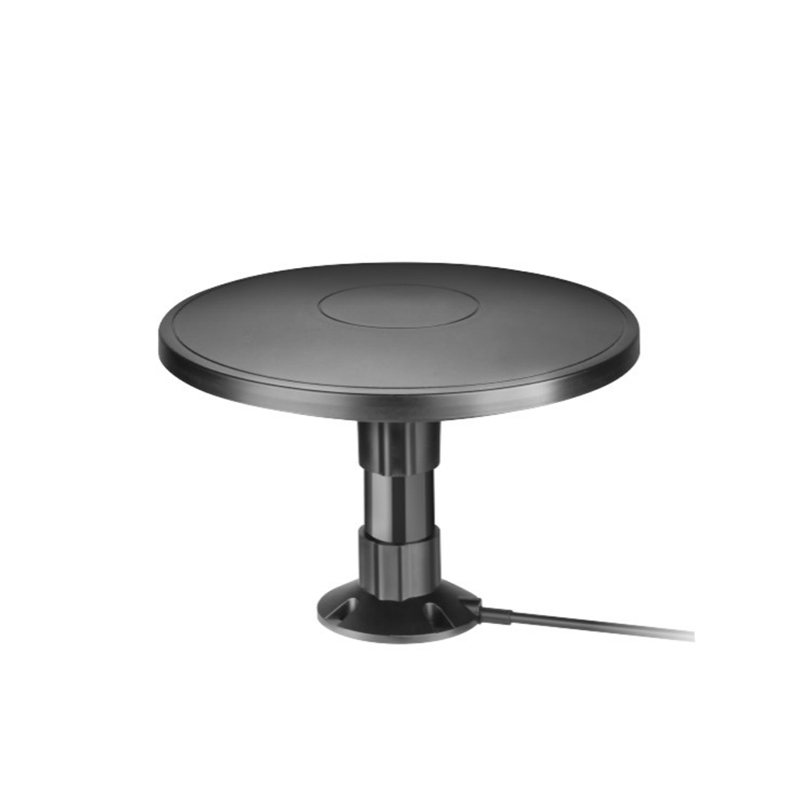

See DetailsIn the digital terrestrial television (DVB-T) reception system, TV DVB-T Antenna selection directly affects more than 50% of the signal reception quality. As an engineer who has been engaged in broadcasting technology for 15 years, I will reveal the scientific selection strategy for indoor and outdoor antennas through system parameter comparison, environmental adaptability analysis and actual measurement data verification.
1. Core parameters determine application scenarios
1.1 Critical point of gain value (Gain)
Indoor antenna: usually 3-8 dBi, suitable for signal strength ≥45 dBμV area
Outdoor antenna: 12-20 dBi, can capture weak signals below 25 dBμV
Technical verification: According to the ITU-R P.1546 propagation model, every 6dB gain increase is equivalent to doubling the transmission distance
1.2 Directivity index comparison
Omnidirectional indoor antenna (such as dipole): 360° coverage in the horizontal direction, vertical lobe angle ±30°, suitable for multi-transmitter environment
Directional outdoor antenna (Yagi/logarithmic periodic type): main lobe width 60-90°, front-to-back ratio ≥15dB, precise pointing to the transmitting tower
2. Environmental adaptability engineering analysis
2.1 Building penetration loss measurement
Building material type 900MHz loss (dB) 600MHz loss (dB)
Single-layer glass 2-4 1-3
Concrete wall 12-18 8-14
Metal curtain wall 20+ 15+
When the total path loss exceeds 110dB, an outdoor antenna must be used with a low noise amplifier (LNA).
2.2 Multipath interference solution
Indoor scenario: It is recommended to use MIMO antenna (such as Cross-polarized design)
Outdoor installation: Avoid ground reflection interference by increasing the height (≥λ/4)
III. Professional purchase decision tree
Signal diagnosis
Use a spectrum analyzer to measure the background noise (R&S FPL1003 is recommended). When C/N is less than 15dB, an outdoor solution is required
Frequency band verification
Check the local DVB-T frequency band (such as 470-790MHz in Germany and 174-230MHz in Australia), and select an antenna that covers the corresponding frequency band
Interface matching
Outdoor systems need to be equipped with lightning protection F connectors (IEC 60169-24 standard). When the line loss is greater than 3dB/10m, use CT125 coaxial cable instead
IV. Installation optimization tips
4.1 Indoor deployment points
Installation at window height increases gain by 2-3dB
Avoid horizontal distance from WiFi router less than 1m
Metal mesh windows need to push antennas outward by 30cm
4.2 Outdoor system engineering
Installation height formula: h=(λ×√(d/17))×tan(θ) (d=transmission distance km, θ=terrain elevation angle)
Coastal areas choose 316L stainless steel material, salt spray test reaches IEC 60068-2-52 standard
Use GPS compass to calibrate direction, error control <5°
V. Typical scenario decision matrix
Scenario characteristics Recommended solution Expected MER value
Urban apartment (transmitting tower within 3km) Planar logarithmic periodic indoor antenna ≥28dB
Suburban single-family (15km single tower) 18-unit Yagi + tower placement ≥24dB
Mountain villa (obstructed by obstacles) Phased array antenna + 4G backhaul compensation ≥18dB
Through scientific parameter analysis and scenario-based deployment, users can improve DVB-T reception quality by more than 300%. It is recommended to use a field strength meter (such as Aaronia Spectran NF-5030) for 48 hours of channel monitoring before final purchase to ensure system robustness. Choosing the right antenna not only affects the viewing experience, but also provides a technical guarantee to avoid repeated investment in the future.
